How To Test A Relay In A Car / Car Fuse Box Making Clicking Noise Best Wiring Diagrams Loot Asset Loot Asset Ekoegur Es - Simply turn on the vehicle and see if it continues to run.. You will need a 12v power supply or ca. All you really need to do this is a multimete. All nc contacts should read 0 ohms to the corresponding pole. Unplug any relay terminal wiring with the interior car a/c controls in the off position. They should be the ones labeled common (c) and normally open (no).
This includes the com terminal, the normally open terminal, and if the relay is a double throw relay, the normally closed terminal. Look on the relay for a diagram of the pins. Grab the relay firmly on either side and pull it straight up and out from the terminals of the fuse box. And one of the best ways to do this is to use a multimeter with an ohmmeter setting and then measuring the resistance values. You may find another relay in your car with the same configuration — arrangement and number of terminals — as your fuel pump relay.
How To Test An Automotive Relay from www.2carpros.com All no contacts should read infinite resistance to the corresponding pole. Other components in your car or home involve complex wiring systems that run on for some length. Using a 4 pin relay for our example, we must first identify the pins. The main reason for testing a relay is to find, whether it is a good or defective one. This video shows you how an automotive relay works and how you can test it using an digital multimeter. Use your fingers to unplug the relay from the socket in which it is placed. Inspect the wiring and the plug for heat damage and repair as needed. The fastest way to test a fuel pump relay or other automotive relays by far, the easiest way to test a suspect fuel pump relay — or some other automotive relay — is to swap the suspect relay with a good one.
All no contacts should read infinite resistance to the corresponding pole.

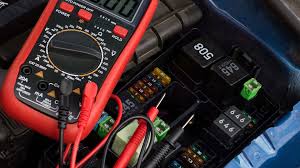

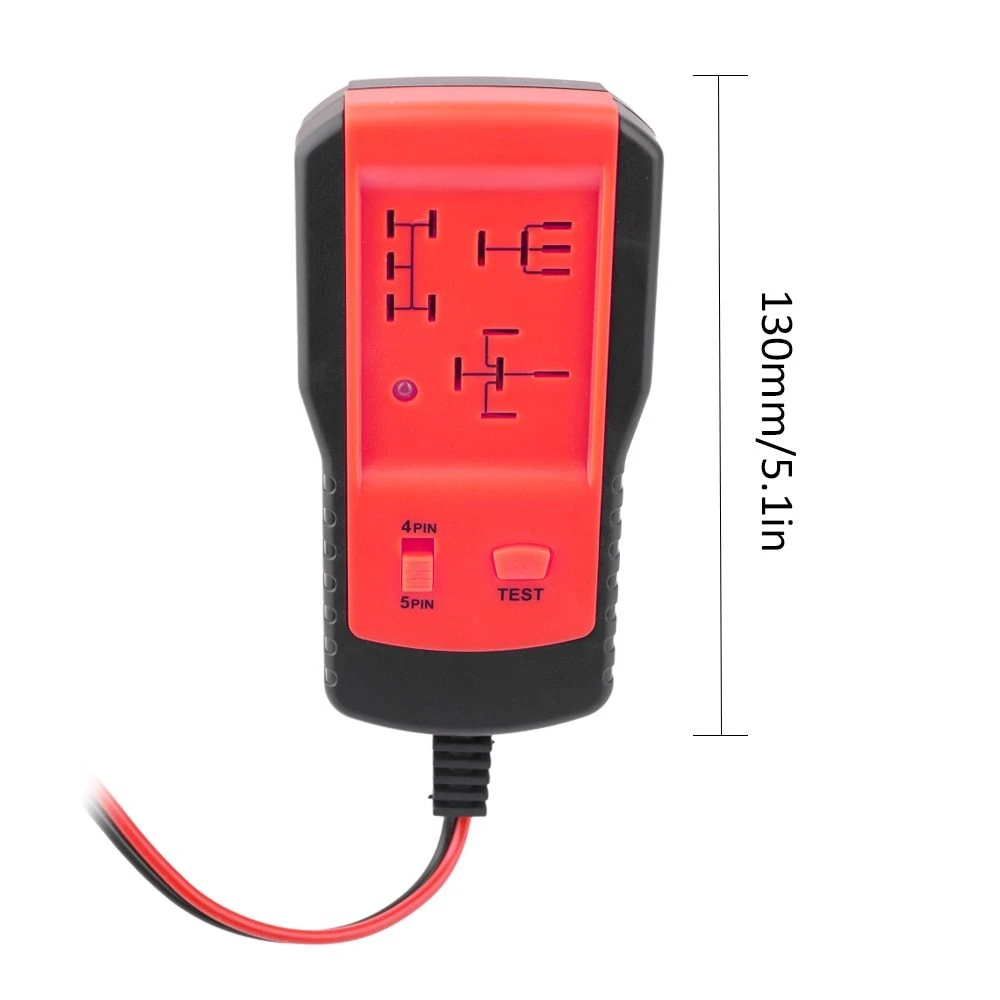

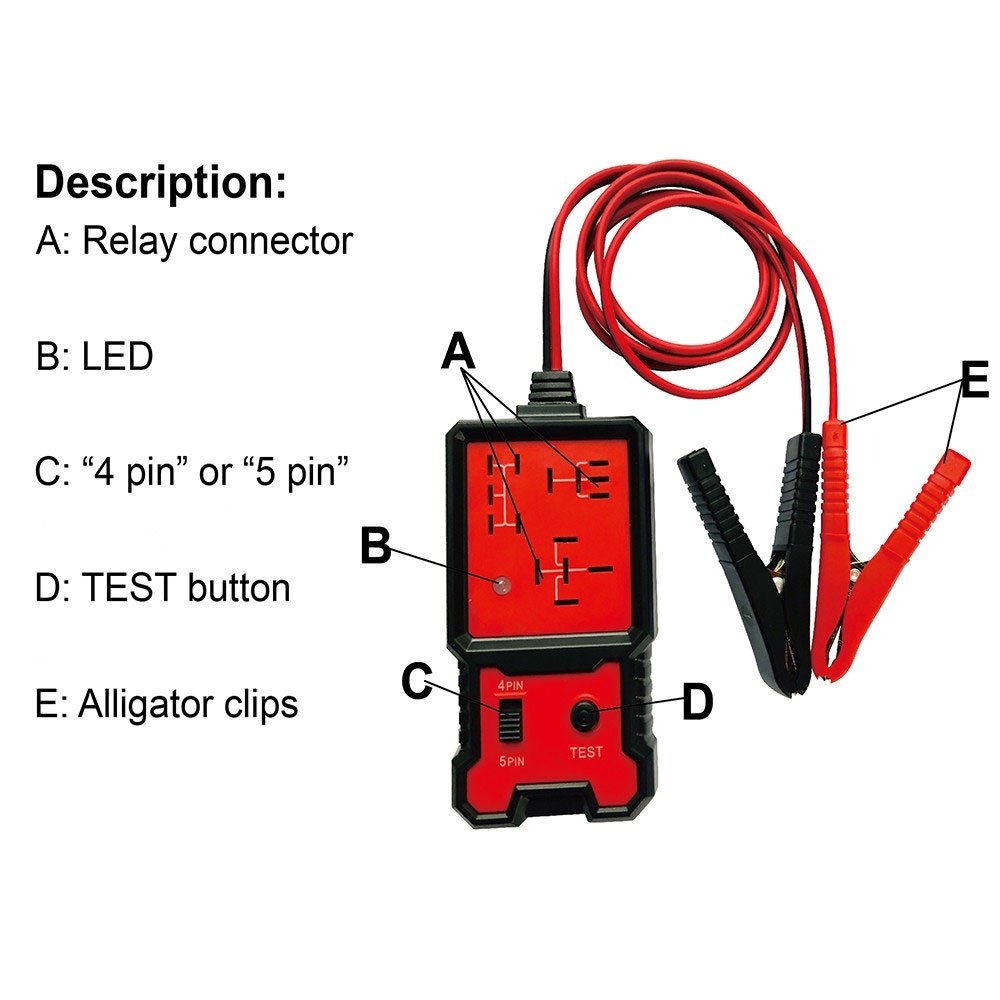

How to test relay any relay voltmeter: It is easier to test fuses than it is to test other electrical equipment. The quickest and easiest way to test a relay is to swap it out with a known good replacement. The relay should not be tested while it is connected to the circuit. With the engine running, the wires should all be inactive. Connect the alligator clip from the light to a suitable ground. Clip one wire to earth on an unpainted part of the car and probe the feed terminal on the relay. With the relay removed from the fuse box, the multimeter set to measure dc voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located). Really the one and only way it should be tested.my cheap multimeter in the video: Grab the relay firmly on either side and pull it straight up and out from the terminals of the fuse box. Then touch the negative lead to a good ground source. Use a circuit tester to check whether current is reaching the relay. The relay is typically located in a place where larger electric parts are placed.
All no contacts should read infinite resistance to the corresponding pole. Pull the relay out of its socket with the ignition off and insert a short piece of wire into the two connections of the relay that make contact when the electromagnetic coil pulls them together. In a car, this is likely a relay or fuse box. Locate the relay in the power distribution box, usually found under the hood, and unplug it. They're small components but make the primary circuit that supplies power to the main starter system.

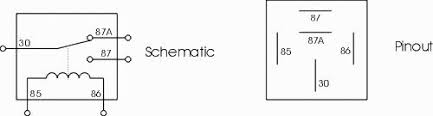

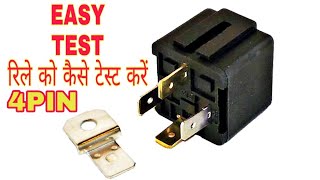

How To Check 4 Pin Relay from img.youtube.com Some manufacturers place a diagram and pin id on the outside of the relay case to show which pins are part of the control circuit and which pins are part of the load circuit. Here is how you test a car relay the correct way. System voltage is shared by most of the computers sensors, actuators and motors. Using a 4 pin relay for our example, we must first identify the pins. Use a circuit tester to check whether current is reaching the relay. If they don't work properly, your car cannot start. Pull the relay out of its socket with the ignition off and insert a short piece of wire into the two connections of the relay that make contact when the electromagnetic coil pulls them together. If so, the main relay is okay.
Pull the relay straight out from the fuse box to remove it.
You may find another relay in your car with the same configuration — arrangement and number of terminals — as your fuel pump relay. With the engine running, the wires should all be inactive. The relay should not be tested while it is connected to the circuit. Grab the relay firmly on either side and pull it straight up and out from the terminals of the fuse box. The fastest way to test a fuel pump relay or other automotive relays by far, the easiest way to test a suspect fuel pump relay — or some other automotive relay — is to swap the suspect relay with a good one. It is easier to test fuses than it is to test other electrical equipment. If so, the main relay is okay. The first step is to test the coil of relay refer to the datasheet to get the coil's resistance. With the ignition key on, switch a voltmeter to dc voltage. How to test relay any relay voltmeter: Check a used car's engine. They should be the ones labeled common (c) and normally open (no). Locate the relay in the power distribution box, usually found under the hood, and unplug it.
Check a used car's engine. In this video we use a ford relay and an audi for examples. With the ignition key on, switch a voltmeter to dc voltage. If the bulb lights, then there is power leaving the relay, and it is working properly. All nc contacts should read 0 ohms to the corresponding pole.
How To Test A Relay The Drive from www.thedrive.com Grab the relay firmly on either side and pull it straight up and out from the terminals of the fuse box. These relays (like the one in the photo in the image viewer) are used in the majority of ford vehicles. Some manufacturers place a diagram and pin id on the outside of the relay case to show which pins are part of the control circuit and which pins are part of the load circuit. Use a circuit tester to check whether current is reaching the relay. If you can't find the fuel pump relay, check your vehicle's manual to see if it lists the location. The disadvantage is the same problem that cooked the first relay could cook the second one. A thin wire runs from the control switch on the steering column or dashboard, while a second thin wire goes to an earthing point. Check a used car's engine.
Other components in your car or home involve complex wiring systems that run on for some length.
All nc contacts should read 0 ohms to the corresponding pole. And one of the best ways to do this is to use a multimeter with an ohmmeter setting and then measuring the resistance values. This video shows you how an automotive relay works and how you can test it using an digital multimeter. If the bulb lights, then there is power leaving the relay, and it is working properly. Use the positive lead to probe the connector terminals you should be able to find system voltage. The quickest and easiest way to test a relay is to swap it out with a known good replacement. These relays (like the one in the photo in the image viewer) are used in the majority of ford vehicles. The disadvantage is the same problem that cooked the first relay could cook the second one. The purpose of testing a relay is to find, whether it is good or bad. All no contacts should read infinite resistance to the corresponding pole. The relay should not be tested while it is connected to the circuit. It is easier to test fuses than it is to test other electrical equipment. Connect the alligator clip from the light to a suitable ground.
